Layout
The layout class has functions that allow the position and dimension of elements to be determined specifically.

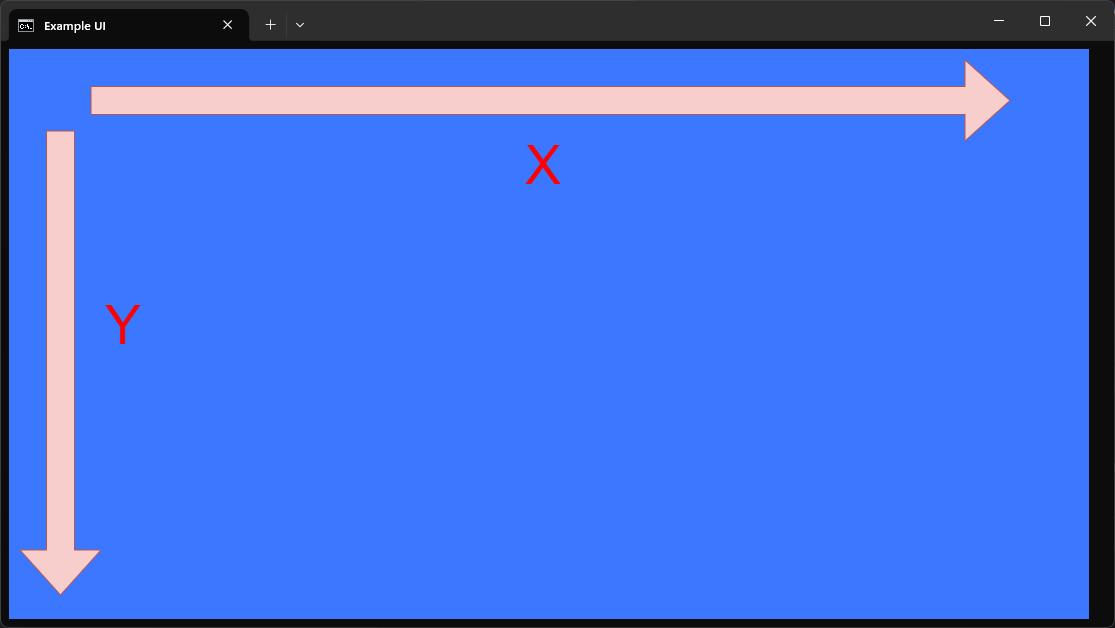

The X/Y values starts at X1; Y1
Position Value
The PositionValue class defines a relative axis value (x/y) that is dependent on the plane and certain factors.
Funktion | Description |
|---|
center | Relative position to center |
center(length) | Relative position to center with offset of half length |
origin | Relative position to origin of superordinate layer |
relative(Anchor) | Relative position to anchor of superordinate layer |
relative(Component,Anchor) | Relative position to anchor of component |
dock(Anchor) | Relative position to docking anchor of superordinate layer |
dock(Component,Anchor) | Relative position to docking anchor of component |

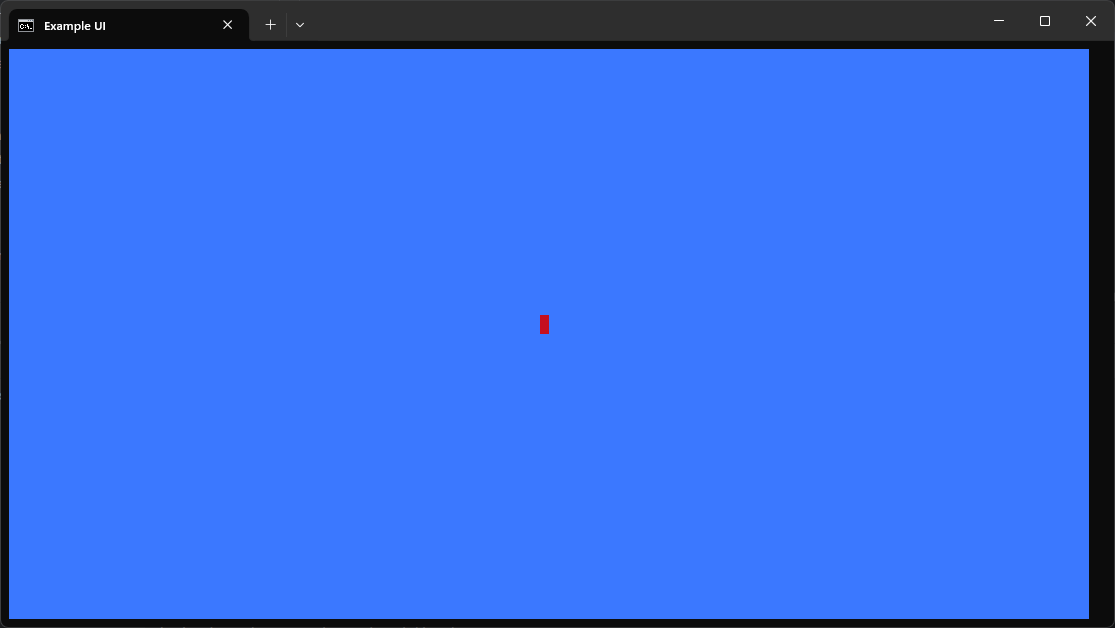

PaneContainer paneContainer = new PaneContainer();
paneContainer.backgroundColor(TerminalColor.DARK_RED);
paneContainer.x(Layout.center());
paneContainer.y(Layout.center());
screen.add(paneContainer);

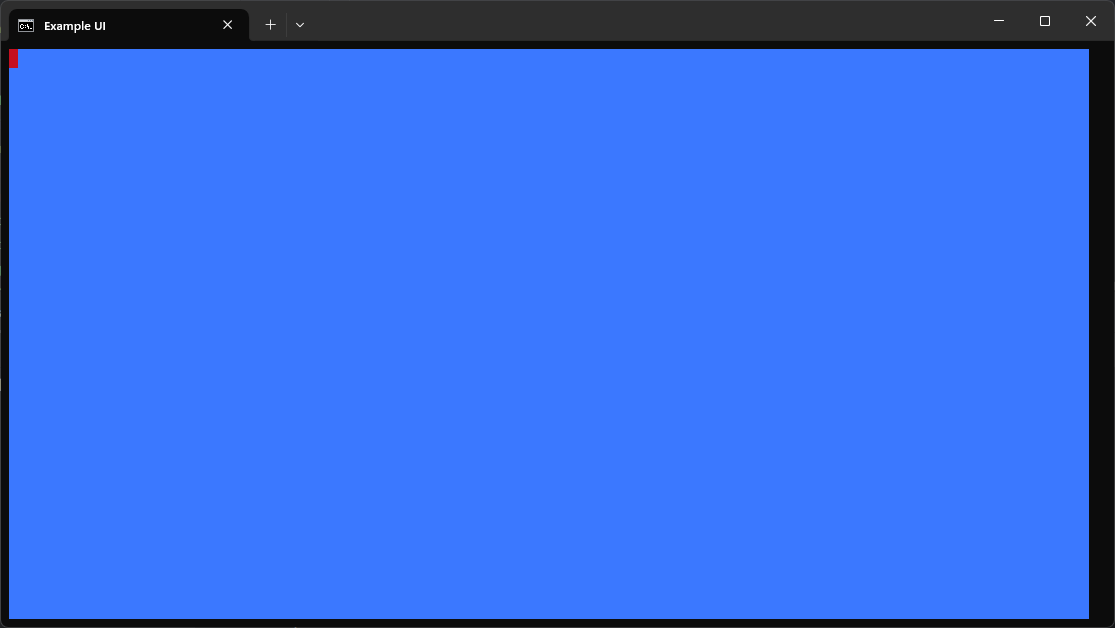

PaneContainer paneContainer = new PaneContainer();
paneContainer.backgroundColor(TerminalColor.DARK_RED);
paneContainer.x(Layout.origin());
paneContainer.y(Layout.origin());
screen.add(paneContainer);

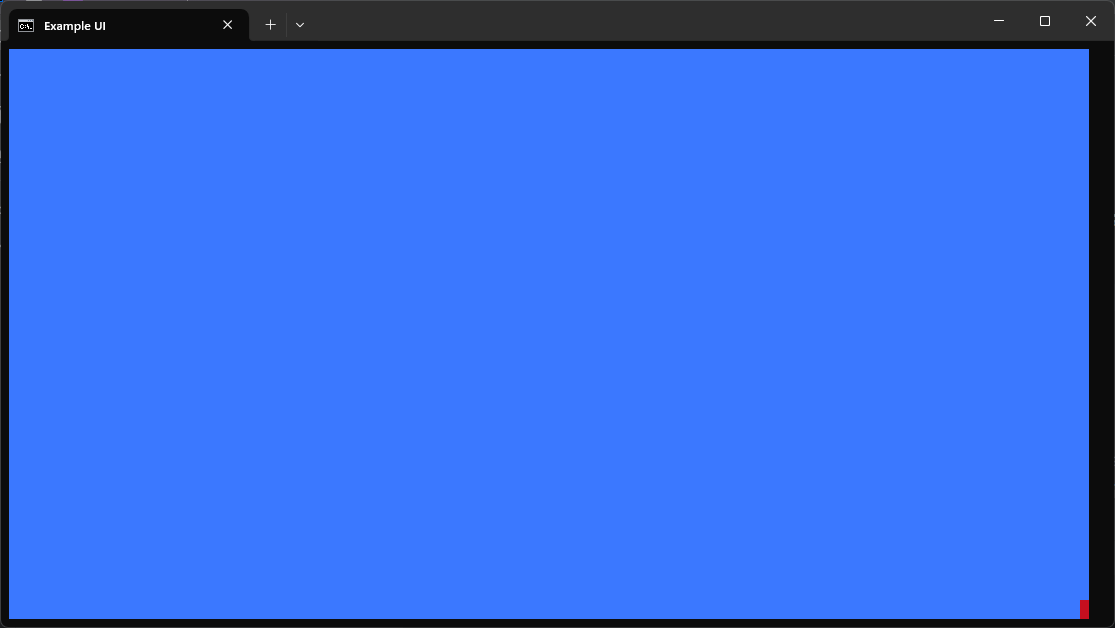

PaneContainer paneContainer = new PaneContainer();
paneContainer.backgroundColor(TerminalColor.DARK_RED);
paneContainer.x(Layout.relative(Anchor.RIGHT));
paneContainer.y(Layout.relative(Anchor.BOTTOM));
screen.add(paneContainer);

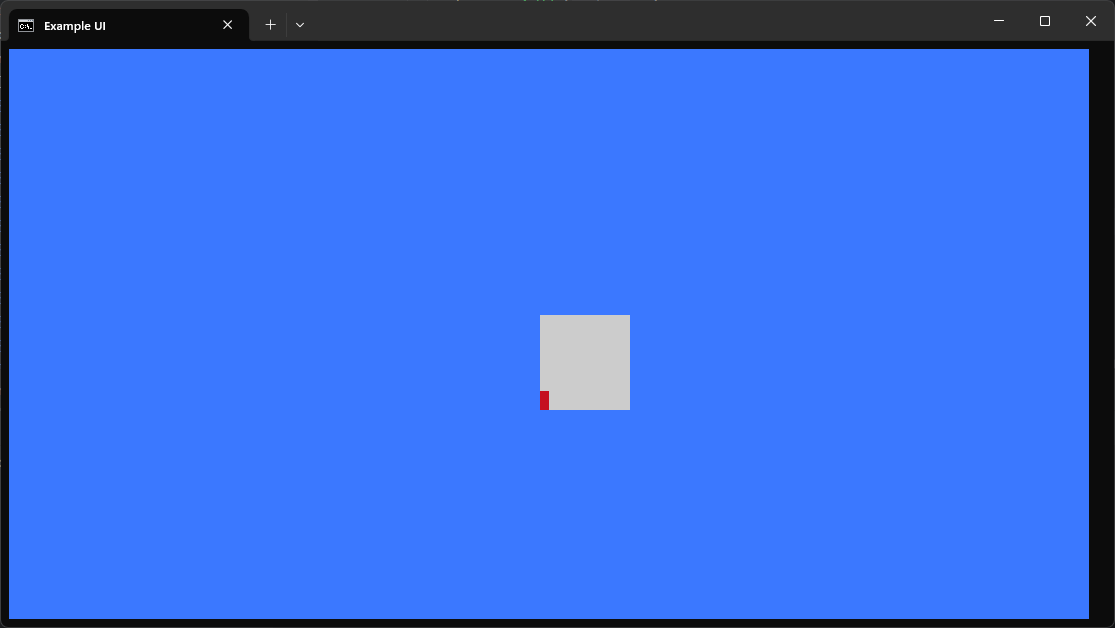

//dummy: white box pane
PaneContainer paneContainer = new PaneContainer();
paneContainer.backgroundColor(TerminalColor.DARK_RED);
paneContainer.x(Layout.relative(dummy, Anchor.LEFT));
paneContainer.y(Layout.relative(dummy, Anchor.BOTTOM));
screen.add(paneContainer);

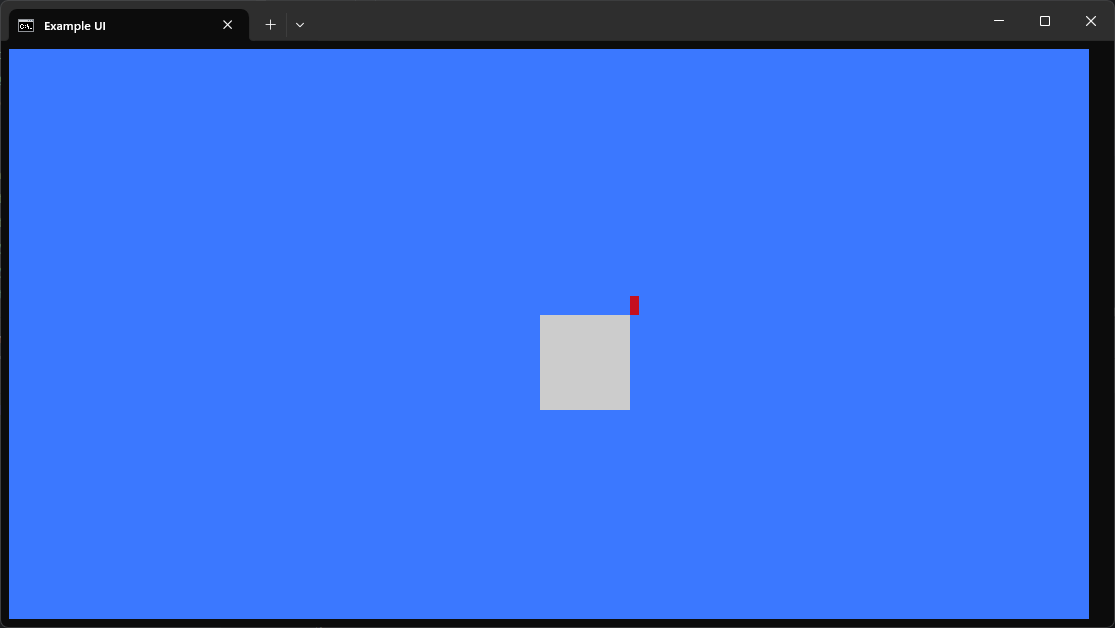

//dummy: white box pane
PaneContainer paneContainer = new PaneContainer();
paneContainer.backgroundColor(TerminalColor.DARK_RED);
paneContainer.x(Layout.dock(dummy, Anchor.RIGHT));
paneContainer.y(Layout.dock(dummy, Anchor.TOP));
screen.add(paneContainer);
Dimension Value
The DimensionValue class defines a relative width/height value that is dependent on the level and certain factors.
Funktion | Description |
|---|
fill | Relative Dimension filled up to superordinate layer |
fill(percent) | Relative Dimension filled up to superordinate layer by percent |
relativeTo(Anchor) | Relative Dimension filled up to anchor of superordinate layer |
relativeTo(Component,Anchor) | Relative Dimension filled up to anchor of component |
dockTo(Anchor) | Relative Dimension filled up to docking anchor of superordinate layer |
dockTo(Component,Anchor) | Relative Dimension filled up to docking anchor of component |
PaneContainer paneContainer = new PaneContainer();
paneContainer.backgroundColor(TerminalColor.DARK_RED);
paneContainer.x(Layout.center());
paneContainer.y(Layout.center());
paneContainer.width(Layout.fill());
paneContainer.height(Layout.fill(0.9F));
screen.add(paneContainer);
//dummy: white box pane
PaneContainer paneContainer = new PaneContainer();
paneContainer.backgroundColor(TerminalColor.DARK_RED);
paneContainer.x(2);
paneContainer.y(12);
paneContainer.width(Layout.relativeTo(dummy, Anchor.RIGHT));
paneContainer.height(2);
screen.add(paneContainer);

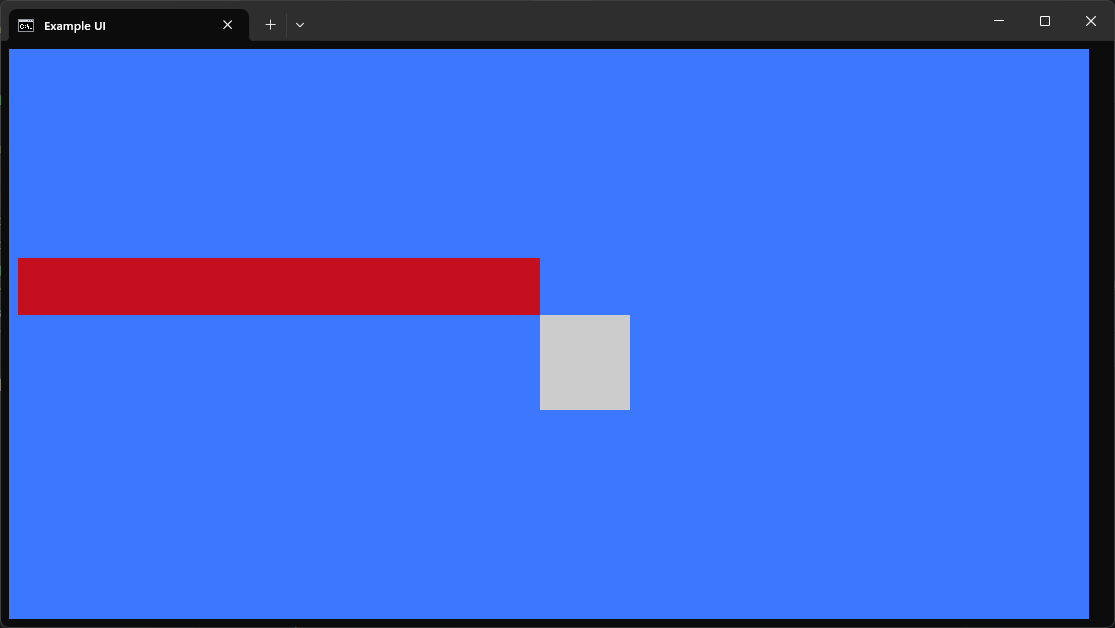

//dummy: white box pane
PaneContainer paneContainer = new PaneContainer();
paneContainer.backgroundColor(TerminalColor.DARK_RED);
paneContainer.x(2);
paneContainer.y(12);
paneContainer.width(Layout.dockTo(dummy, Anchor.LEFT));
paneContainer.height(Layout.dockTo(dummy, Anchor.TOP));
screen.add(paneContainer);
Modifier
The modifiers can change the dependent values for position or dimension.
Modifier | Description |
|---|
scale(float 0-1) | Scale the value by factor |
offset(int) | Move value by Offset |
min(int) | Determine a minimum value |
max(int) | Determine a maximum value |
component.x(Layout.center(), Layout.offset(-5));
component.y(Layout.center(), Layout.max(15));
component.width(Layout.fill(), Layout.scale(0.5F));
component.height(Layout.fill(), Layout.offset(-1));
Last modified: 01 Juni 2025
